Z1.2.2 | TTA Retrieving BgZ - FHIR Direct Pull
For this use-case the exchange pattern Direct Pull with FHIR is used. Below you will find the description of this exchange pattern.
Original page can be found at: 10.2.4 | TTA FHIR - Pull
This exchange pattern (Direct Pull) is Draft, intended for further coordination with suppliers and healthcare providers.
This Twiin Technical Agreement (TTA) describes and specifies technical responsibilities to which parties agree when connecting to exchange transactions to facilitate the Direct Pull.
The retrieval of a patient’s medical record might for instance be initiated to retrieve history when the patient is scheduled for a patient requested second opinion. This transaction will only be supported with explicit consent of the patient.
Sequence diagram

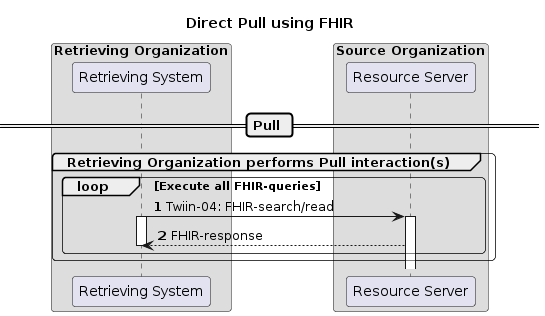

The sequence diagram below visualises the flow for the Direct Pull interaction sequence based on HL7 FHIR®.
The section consists of two steps. The steps correspond to the numbers in the sequence diagram.
Retrieving Organization performs Pull interaction(s) | 1-2 | The Retrieving System executes the necessary FHIR queries to retrieve the necessary information for the usecase. See 10.3.4 | Twiin-04 | Search Resource(s) for a detailed description for the retrieval of resources. |
